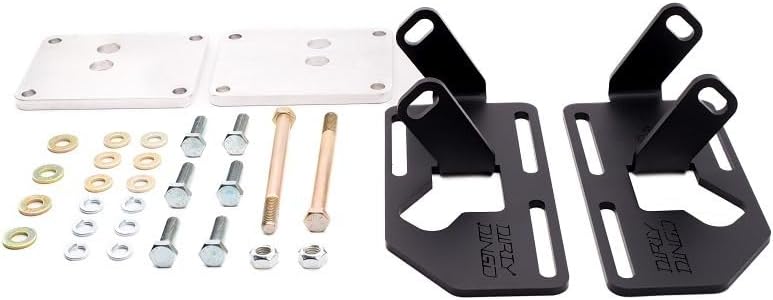

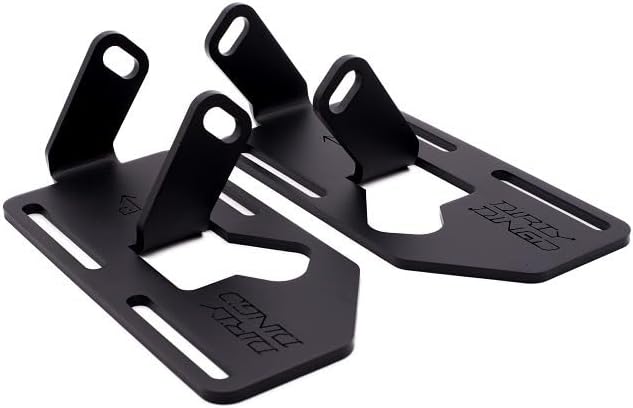

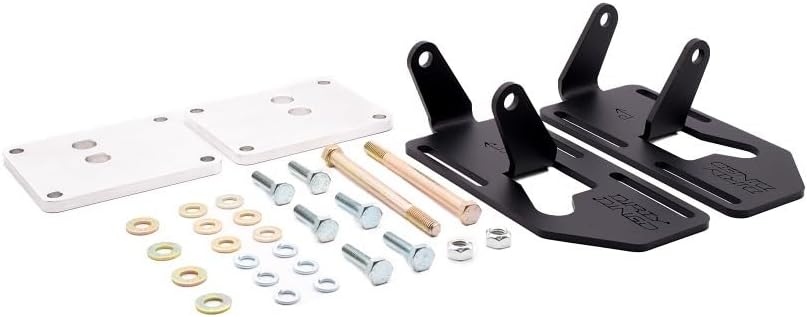

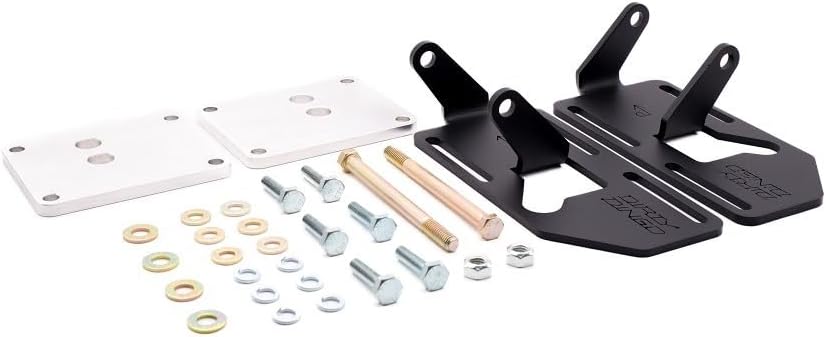

Dirty Dingo E-Z LT Gen 5 Swap Engine Mount (Plain Steel)

Dirty Dingo LT adjustable conversion mounts are for installing the 2015-up Gen V LT series engine into older GM muscle cars. They are slotted for adjustment with engine placement in the engine compartment. These mounts will allow you to move the engine from the original bell housing position up to 2 1/2 inches forward, and up to 1/2 inch rearward. When torqued in place they do not allow the engine to move, even under high horsepower applications. Precision CNC laser cut from .250 thick 1050 High Carbon cold rolled steel. Precision CNC press brake folded with large radius die to reduce stress on the bend. These conversion mounts are designed to be used with the factory rubber clam shell style mounts on your original frame. Grade-8 zinc coated hardware including new cross bolt. These mounts are raw steel, not powdercoated. * Using the factory LT Truck oil pan will require notching the factory frame cross member. * (Raw steel not painted) Black texture powder coat is available. Make your selection below. * Sold in pairs, left and right. "D" is Drivers side, "P" is Passenger side. Arrows point forward. * These mounts will not clear low mount a/c.
